Description

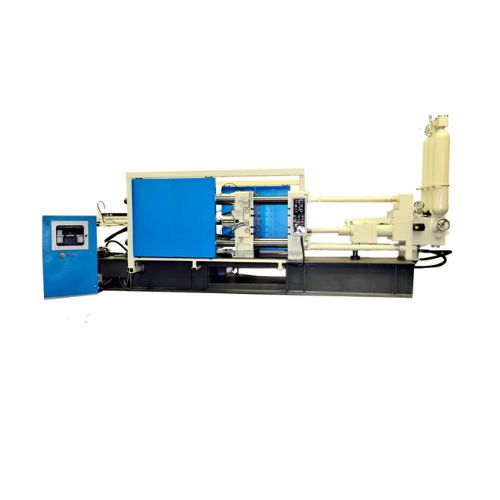

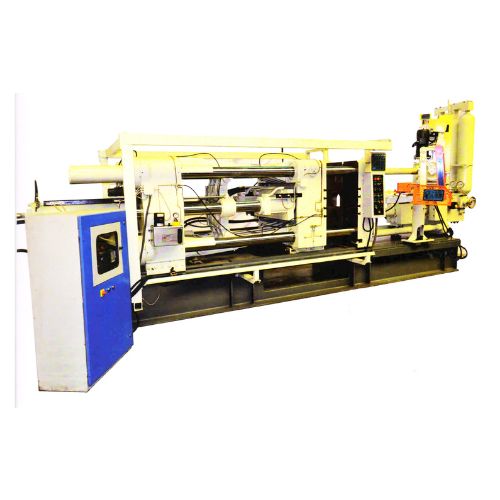

Horizontal Cold Chamber Pressure Die Casting Machines suitable for the production of large parts with high strength requirements. At present, we produce cold chamber die casting machines from 80 Tonnes to 400 Tonnes, including TDC 80T, TDC 120T, TDC 180T, TDC 250T, and TDC 400T.
| Locking Force | 250 | Tones |
| Injection Force | 38 | Tones |
| Hydraulic Ejection Force | 15 | Tones |
| Die Mounting Plates | 930*930 | mm |
| Space Between Tie Bars | 580*580 | mm |
| Max Die Height | 750 | mm |
| Min Die Height | 250 | mm |
| Tiebar Diameter | 110 | mm |
| Die Opening Stroke | 500 | mm |
| Injection Stroke | 450 | mm |
| Ejection Stroke | 100 | mm |
| Distance Between Center and Bottom Injection | 0,150 | mm |
| Electric Motor Capacity | 22.4 | kw |
| Working Pressure | 150/35 | kg/cm2 |
| Hydraulic Pump | 45/150 | lit/min |
| Capacity of Oil Tank | 600 | Litres |
| Machine Weight | 12.5 | Ton |
| Shot Capacity | 3690 | GM |
Features:
- Three Stage Injection
- Centre and Bottom Injection Position
- Centralized Lubrication
- Simple Hydraulic System
- Heat Exchanger incorporated in return flow
- Hand and Semi-Automatic Cycle Operation
- Built-in provision for core cylinder
- Provision for zero leakage of nitrogen gas
